Optical
Pocket
Tester
PM-215-G
Two functions: Portable power meter and USB probe – accessory of Testing Workplace
The PM-215-G optical power meter is a small, pocket size low cost item. The small size does not prevent the optical meter fulfilling all technical requirements for field equipment. The tester can be used as pocket power meter or as USB probe, part of testing workstation. It can be placed within rack mount ODF’s with the display on the top or on the side. The Li-Pol rechargeable battery ensures long term working time with a minimum life time of 2 years. The unit is able to store 100 measurements which can be uploaded to PC and managed with SmartProtocol software or Data Exporter.
DOWNLOAD
DATASHEETFEATURES
- Small size, light weight
- Six working wavelengths
- Absolute and Relative optical power measurement
- Internal two level memory structure
- Capacity up to 100 measurements
- SmartProtocol SW – generation of test reports
- Data exporter
- USB port for: - Charging the battery - Data upload to PC - Firmware upgrade
- Built-in Li-Pol rechargeable battery pack
- Auto Off
- Battery status indicator
ACCESSORIES
- Power meter
- Changeable input adaptors
- USB cable
- Li-Pol battery
- Power charging adapter 5 V DC
- Calibration certificate
- Hard carrying case
- Smart Protocol PC software
- Data Exporter PC software
APPLICATIONS
- Absolute or relative optical power measurement
- Optical network testing
- Measurement output power of optical transmitters
- Measurement input power at optical receivers
- Measurement attenuation in fiber cabling, in conjunction with the LS-800 Optical light source, LS-215 or the OFT 820 Loss Test Set
- Measurement loss of connectors, splices, adaptors, switches and other fiber optic components
- Easy and quick identification of failure points in fiber optic networks
- Suitable for SM and MM applications
OFT-920
Ruggedized
Optical
Test Set
The OFT-920 ruggedized optical test set is designed for testing of optical networks terminated with connectors operating in harsh environment. It combines both light source and optical power meter in one common box. The test set is designed to meet the mining, petrochemical and broadcast industry demand. The ruggedized aluminum case makes the unit ideal for field operation. The memory capacity allows storage and uploading of up to 2000 measurements including memory position or fiber number, wavelength, absolute value or relative value and insertion loss. The tester supports memory download and test report generating. The rechargeable battery ensures long term working with minimal operation costs.
DOWNLOAD
DATASHEETFEATURES
- Expanded Beam and ferrule technology harsh environmental connectors
- Ruggedized aluminum case
- Multimode (MM) and/or Singlemode (SM) applications
- Simultaneous testing of all 2/4 fibers
- Internal memory
- Displayed units: dBm, dB
- High dynamic range
- Various light sources combinations
- Built-in charger, battery status indicator
- Easy to use with menu navigation
ACCESSORIES
- Power charging adaptor and USB Cable
- Soft carrying case
- Cleaning swabs
APPLICATIONS
- Optical networks measurements
- Fiber continuity testing

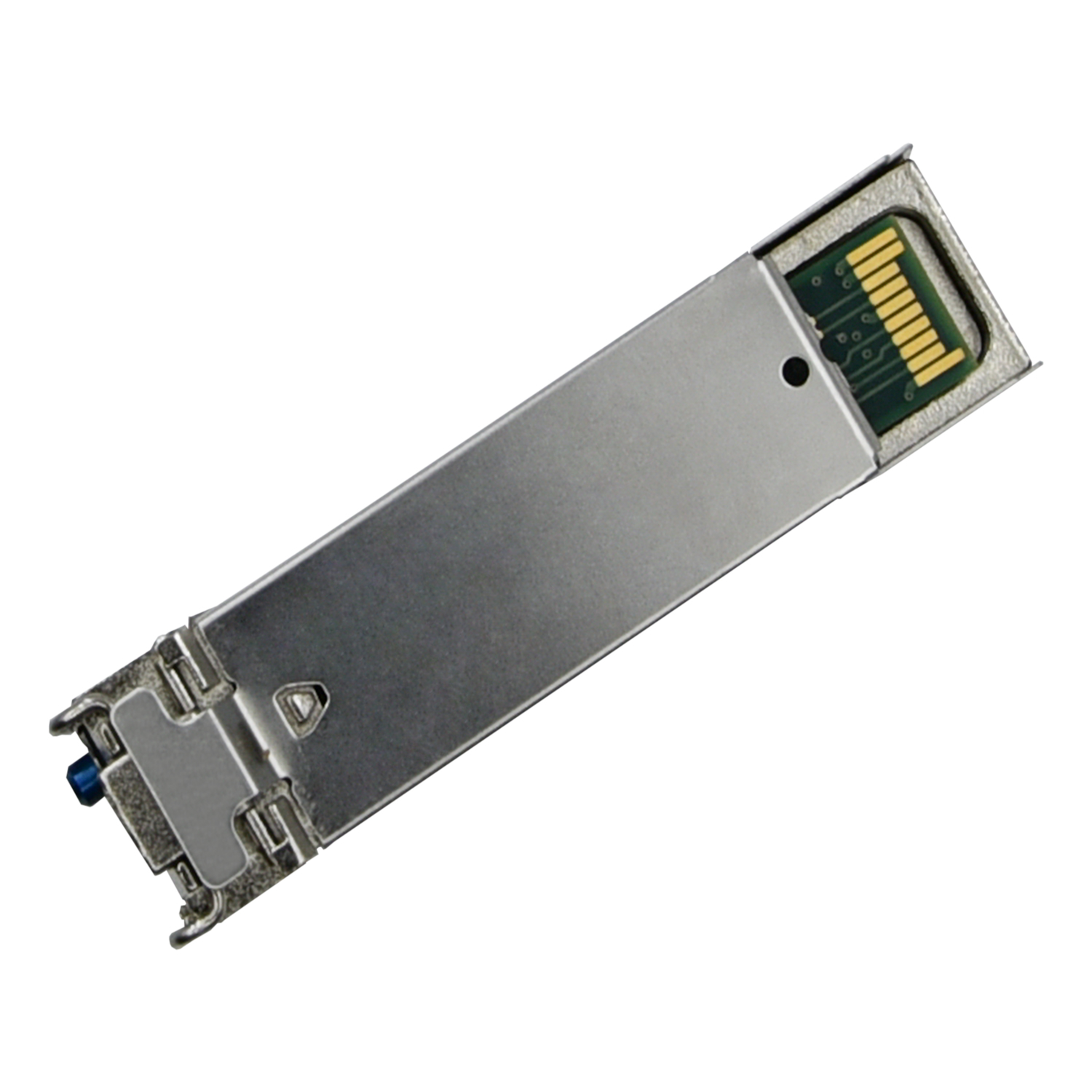

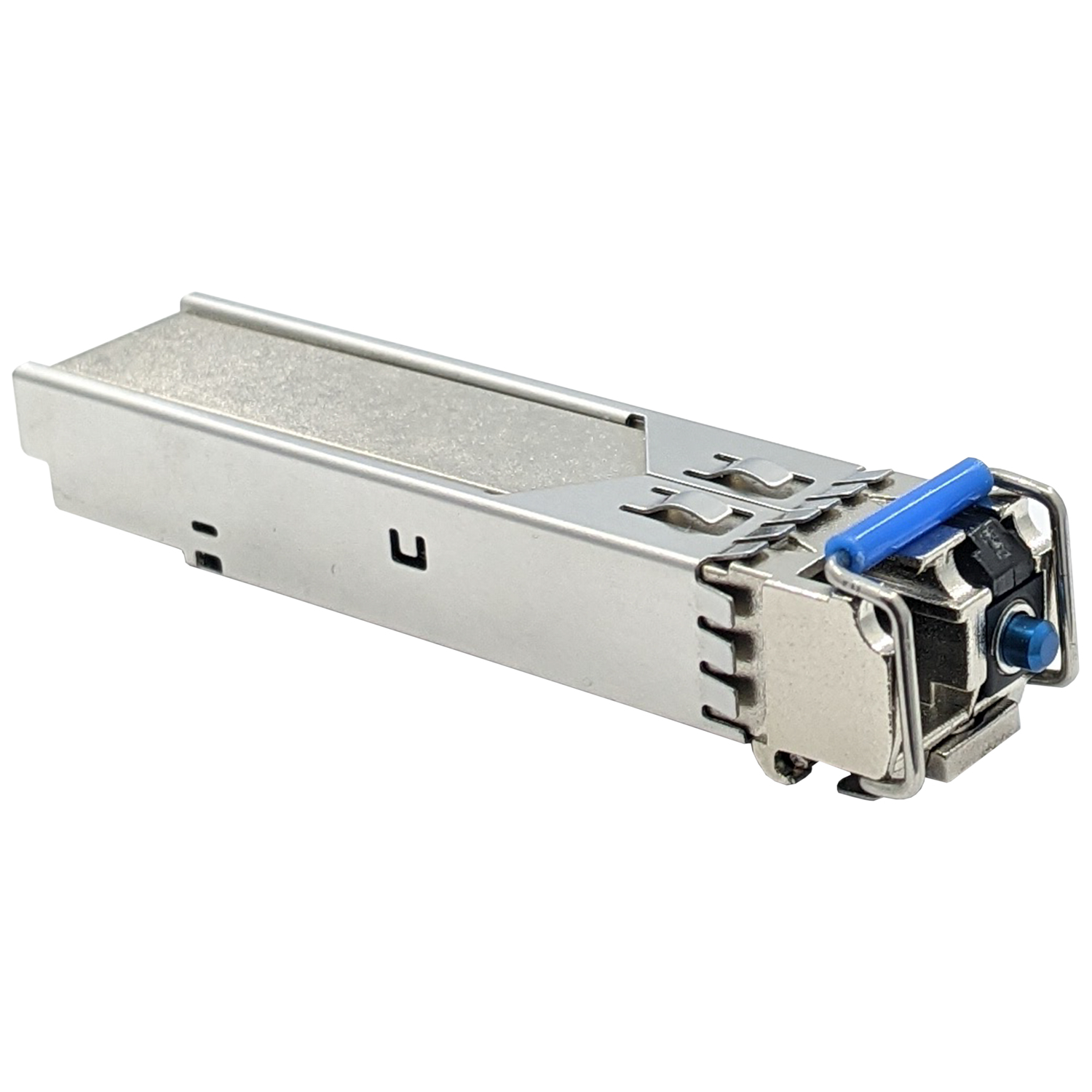

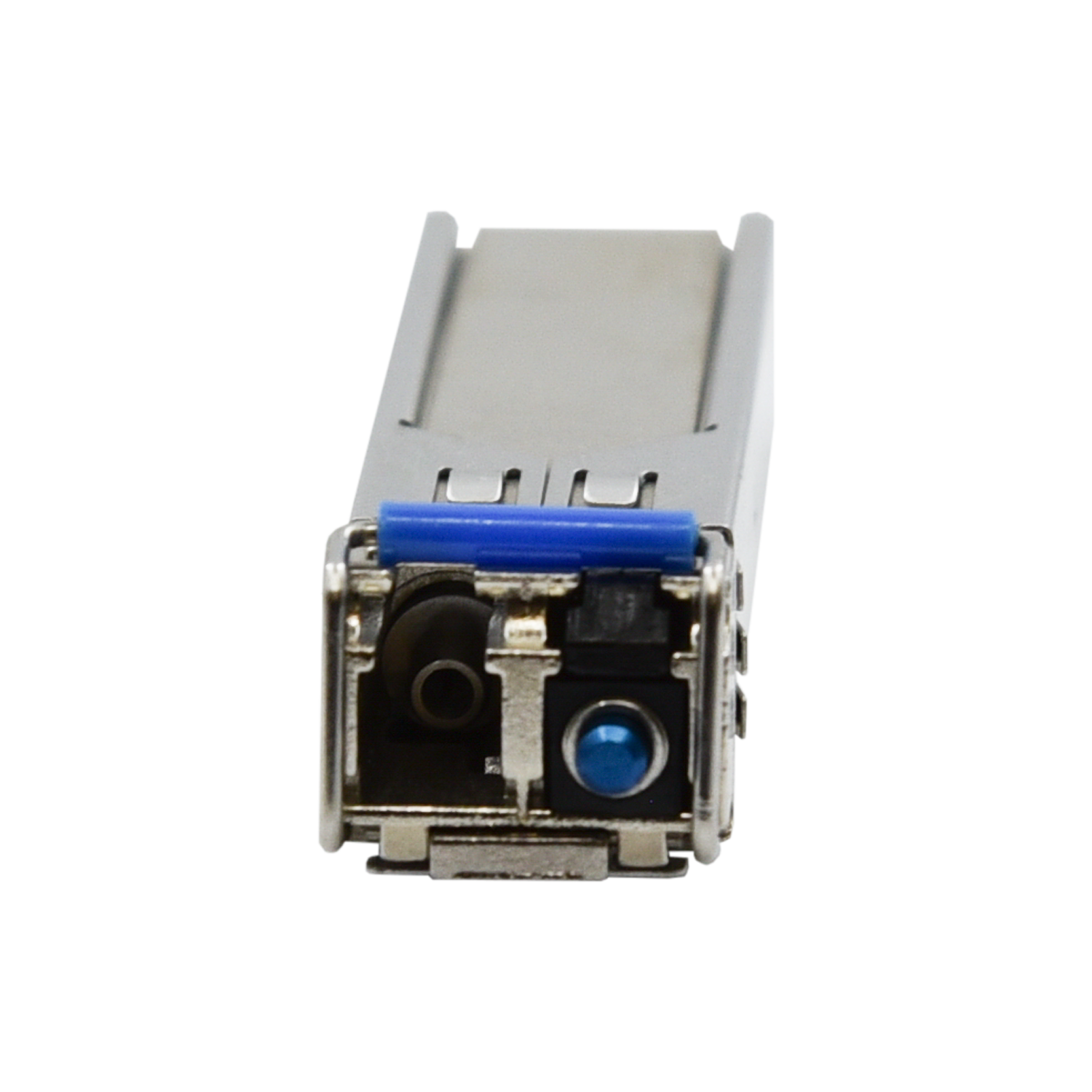

VFL-SFP™

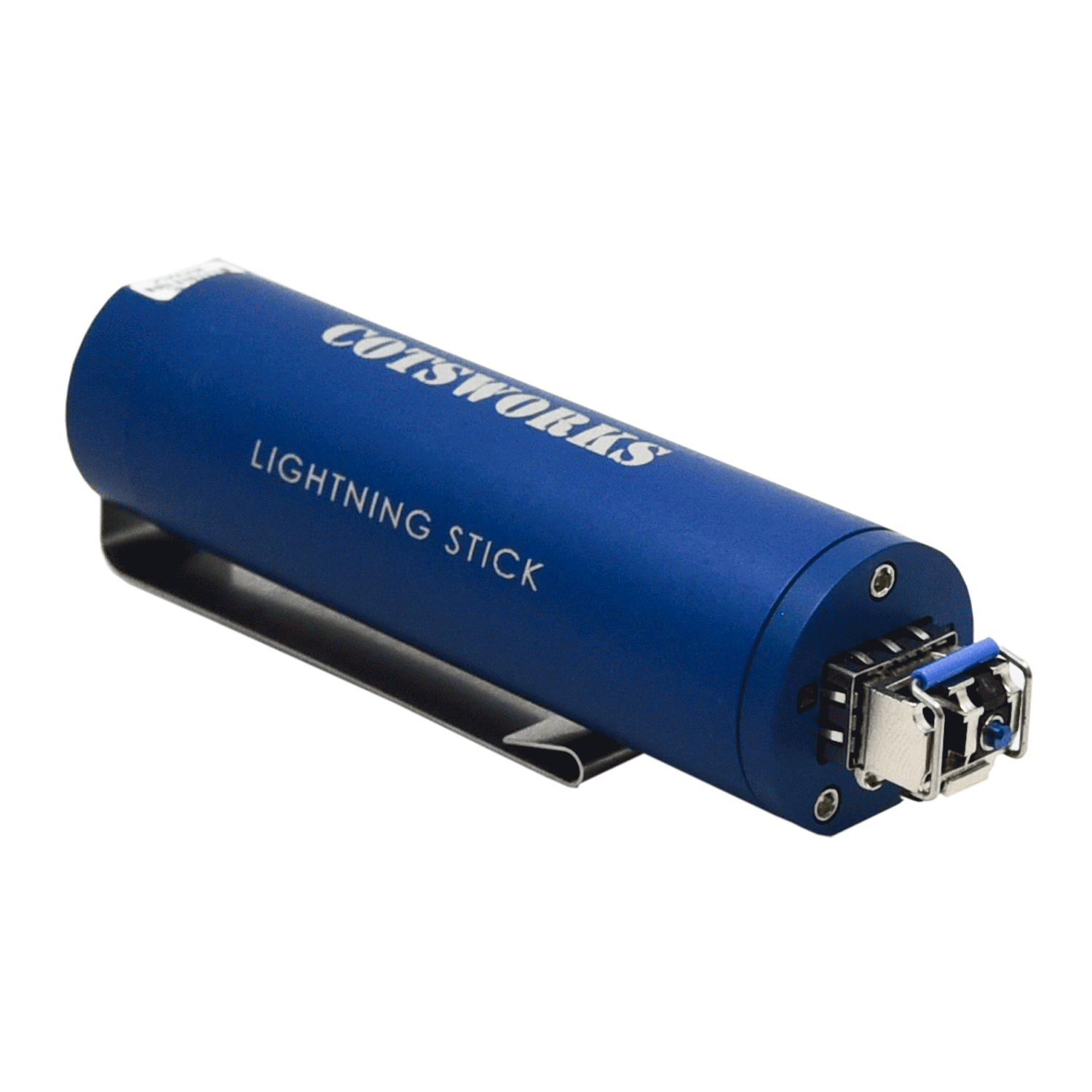

SFP with pushbutton control or software control to detect breaks in fiber cables when used with any standard MSA or SFP port, ethernet switches, servers, or COTSWORKS Lightning Stick™.
635 nm min / 670 nm max LED transmitter
Pushbutton control or software control
Detects breaks in fiber cables
LC connector

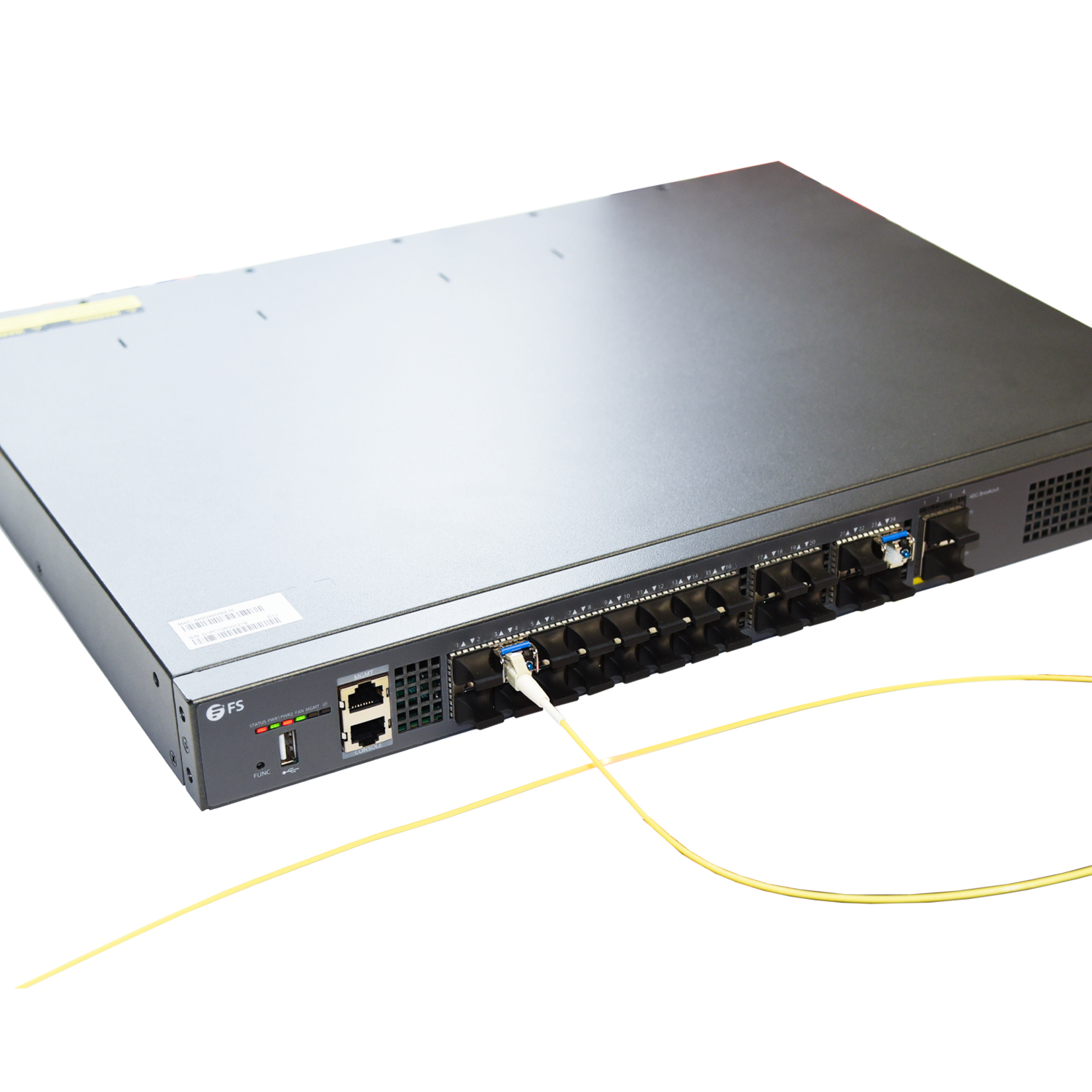

Operational in any standard (MSA) SFP port, ethernet switches, servers, Lightning Sticks, etc.
