Distribution
Cable
2F/4F/6F/8F

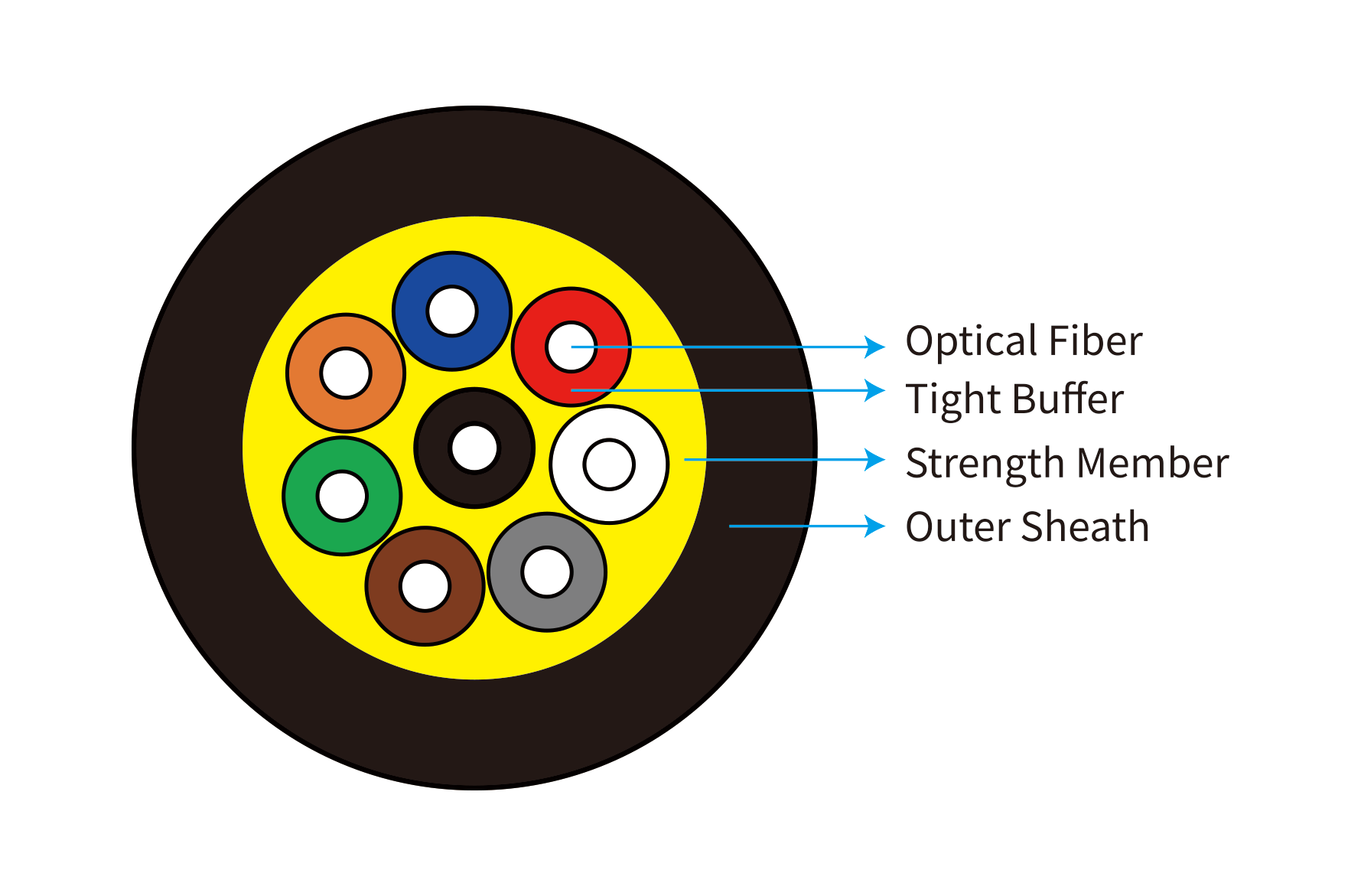

X-BEAM TECH provides reliable distribution optical cables to fulfill customer requirements. We offer fiber counts ranging from 2 fibers up to 8 fibers per cable.
• Designed to improve flexibility and tensile strength, making them suitable for both indoor and outdoor installations.
• The aramid yarn is inserted into the cable with tight buffered fibers to enhance the tensile load.

Type of optical fibers supported Singlemode Fiber G.657.A2
Singlemode Fiber G.657.B3
Multimode Fiber OM1
Multimode Fiber OM2
Multimode Fiber OM3
Multimode Fiber OM4

DOWNLOAD

DATASHEET

FEATURES

  • Singlemode or multimode fiber
  • Tight buffered fiber
  • Ease of handling with flexibility and
    lightweight design
  • Aramid yarn reinforcement for fiber protection
  • Operating temperature range: -40℃ to +85℃
  • Distribution-style cable with 2 to 8 fibers

APPLICATIONS

  • FTTx network
  • Indoor/outdoor applications
  • Backbone within a building
  • LAN

Anti-Hacking
IB Optical
Cable

IB (Infrared Blocking) Optical Cable can block external fiber signal leakage or interception across a fiber optic network through physical hacking methods such as fiber tapping or macro-bend clamping devices. We provide a full range of fiber optic cables to fulfill customer requirements.

Anti-hacking (IB) optical fiber cables can prevent optical signals from being intercepted or added by hacking equipment within an optical network. They can block illegal leakage or disruption of communication information transmitted through optical cables. These cables are compatible with existing optical cables while maintaining transmission characteristics depending on the environment. They can be widely applied in the military, government-affiliated organizations, and telecommunication companies, and can also be used in submarine optical cables for intercontinental connections.

DOWNLOAD

DATASHEET

FEATURES

  • Blocks fiber signal leakage or interception
  • Compatible with existing optical cables
  • Singlemode or multimode fibers
  • Structure can be varied upon customer request

APPLICATIONS

  • Military, governmental institutions, communication businesses, and various other fields
  • Applicable for submarine optical cables

DOWNLOAD

DATASHEET

STANDARD
& CODE

  • ITU-T.G.651 / G.652 / G.655 / G.657
  • IEC 607984-1-2
  • IEC 60793-1
  • IEC 60811-1-1

DOWNLOAD

DATASHEET

PRODUCT

  • Indoor Optic Cable
    Simple Cord, Duplex Cord, 4C Zip Cord,
    Breakout Cable, Ribbon Cord, Distribution Cable
  • FTTH Optic Cable
    Underground Duct Type, Aerial Type
  • Outdoor Loose Tube Cable
    Aerial Type, Fig-8 Type, Duct Type,
    Direct Buried Type
