HXB11

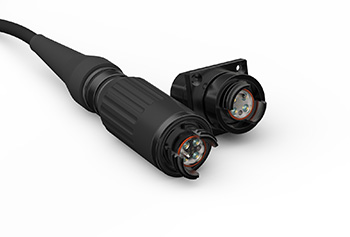

The HXB11 Connectors, featuring expanded beam technology, hermaphroditic connections, and rugged construction for field deployment, have been designed for harsh environment applications such as military tactical communications, avionics, offshore systems, outside broadcast, mining, and plants.
The expanded beam technology uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to the presence of damage or contamination at the fiber end.
The hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments.
DOWNLOAD
DATASHEETFEATURES
- Advanced expanded beam technology
- Rugged, field-deployable fiber optic connector
- Hermaphroditic interconnection
- 1, 2, and 4 optical channels
- Singlemode (SM) or Multimode (MM)
- Custom configurations available
- Environmental sealing (IPX8)
- Very high resistance to vibration, shock,
environmental effects, dust, and debris - Easy to clean, no special tools required
- No adapters necessary

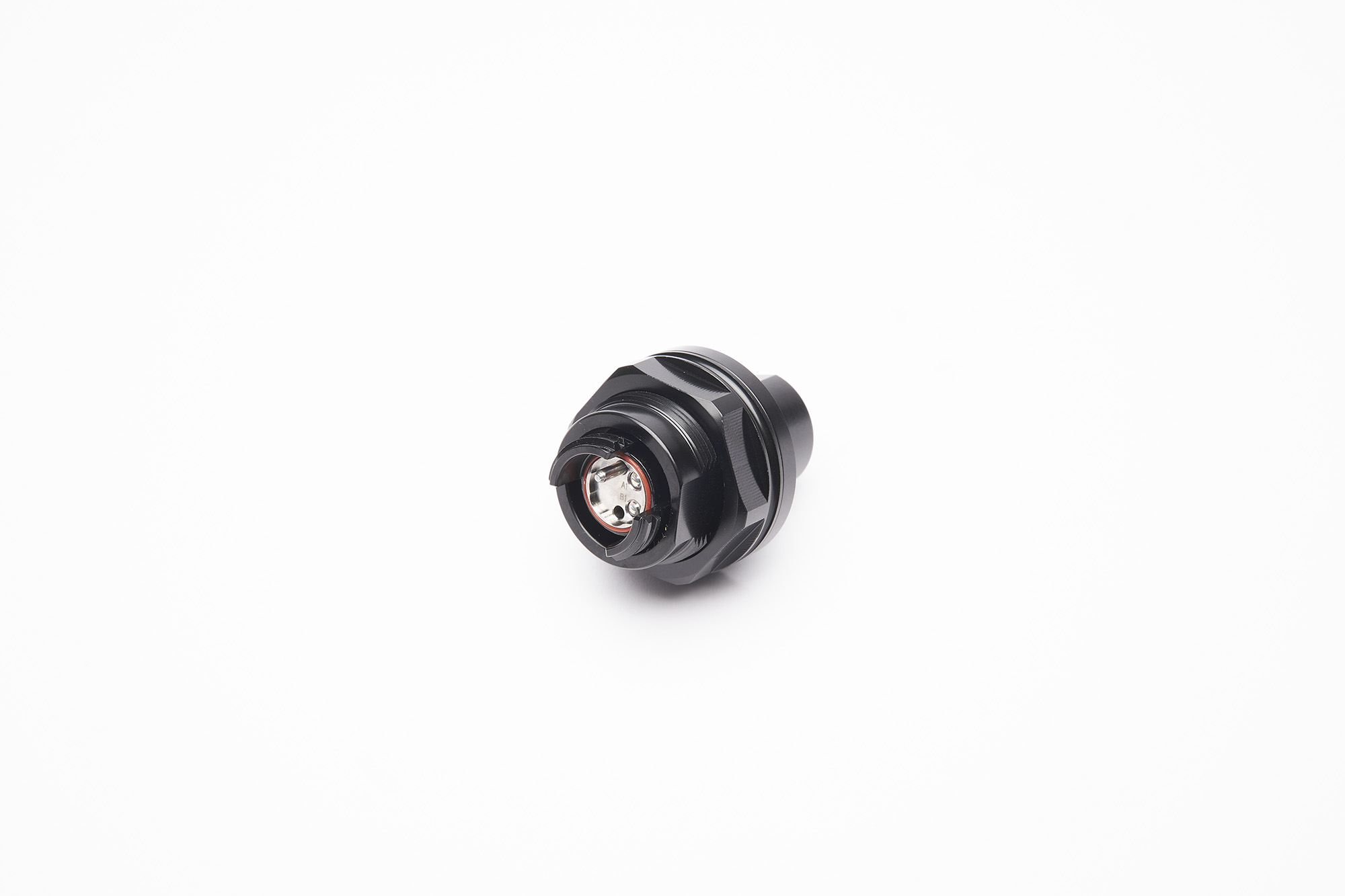

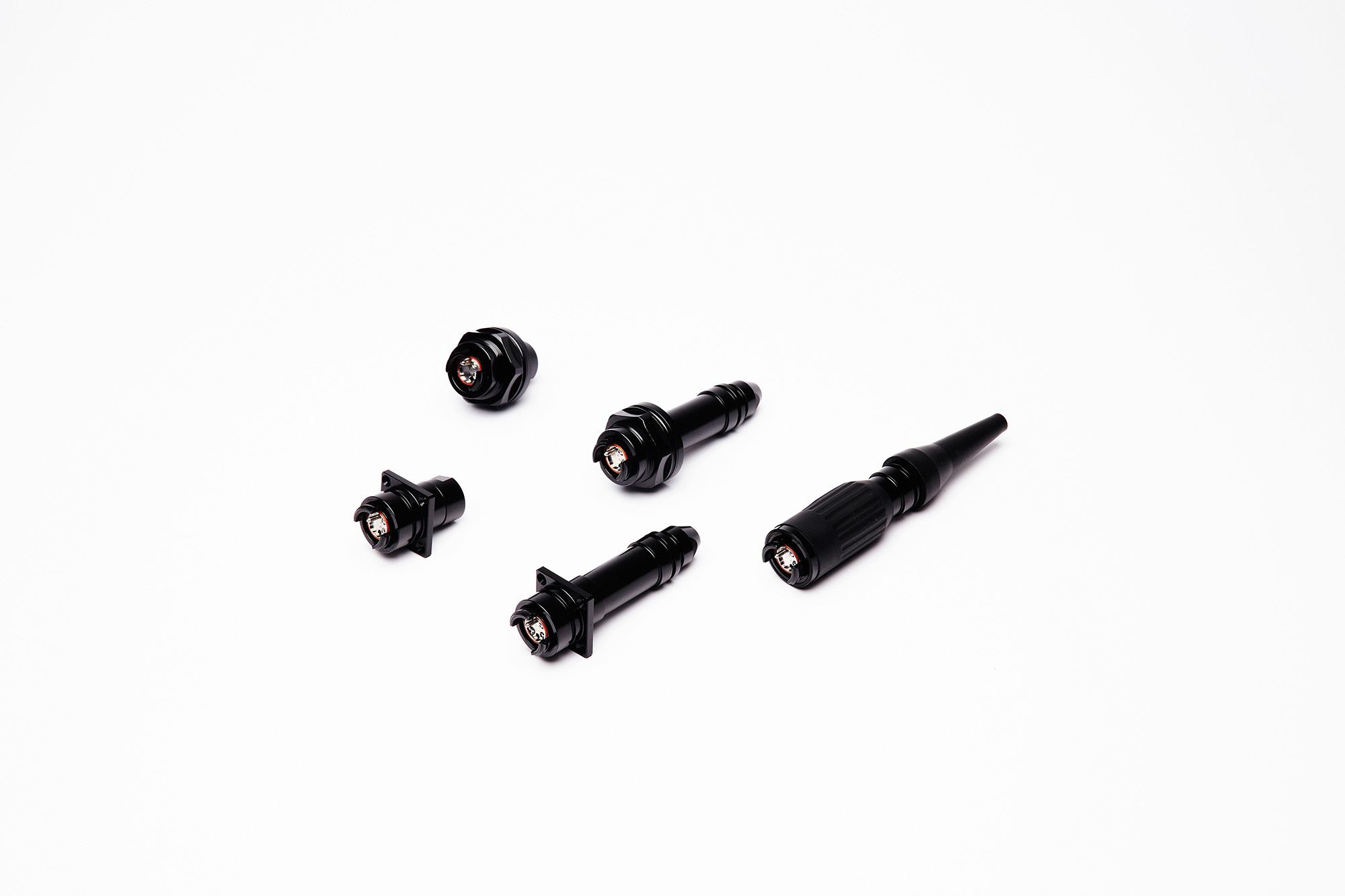

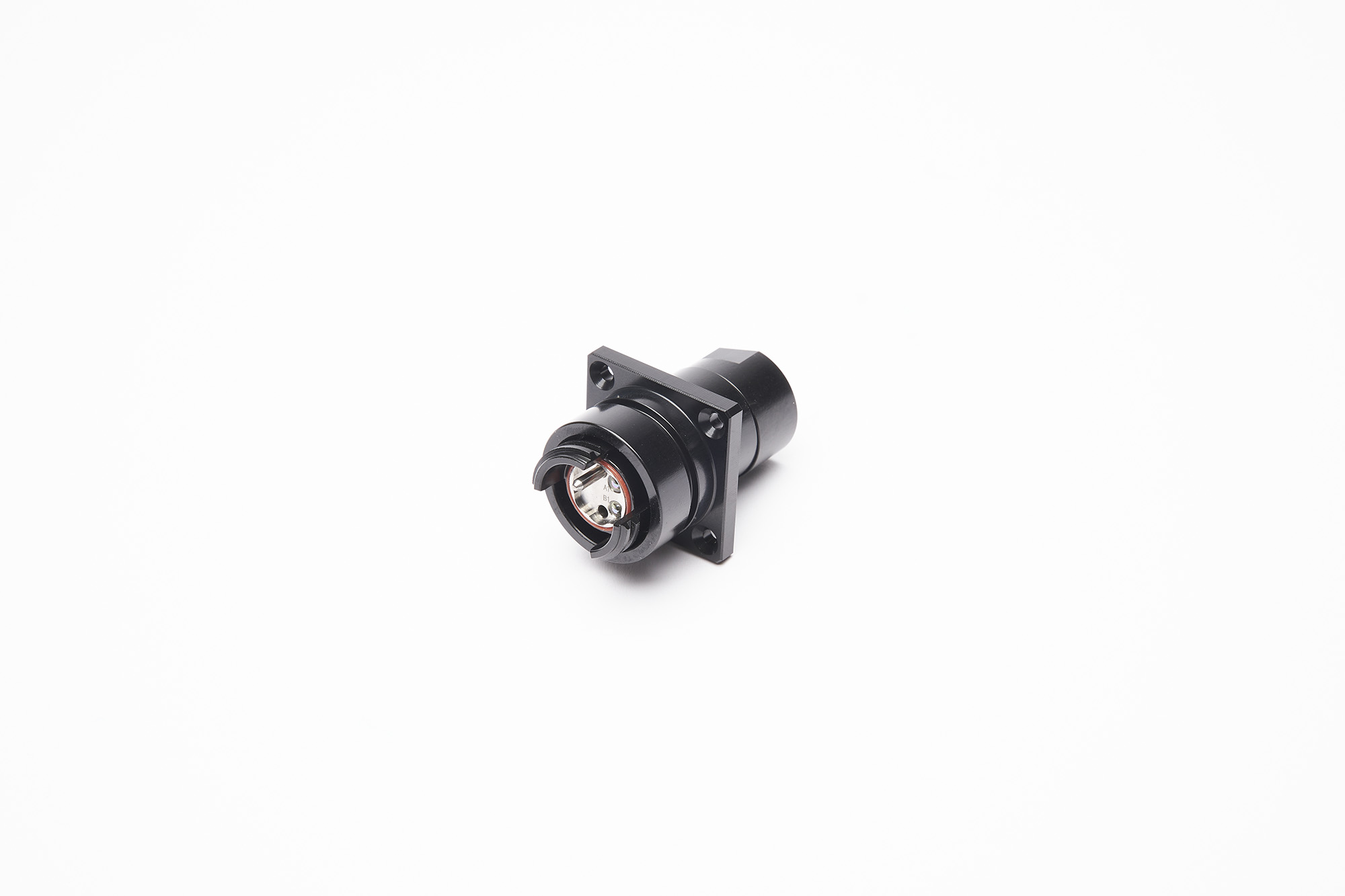

- Cable assemblies with plugs and bulkheads
APPLICATIONS
- Military Communications
- Avionics, Marine
- Mining, Oil and Gas
- Rail, Transport
- Broadcast, AV
- Telecommunications
- Medical
- Industrial
SPECIFICATIONS
Optical Performance
- Insertion Loss
-
Typical 0.8 - 1.8 dB @ 1310, 1550 nm
Typical 0.5 - 1.0 dB @ 850, 1300 nm -
Singlemode
Multimode
- Return Loss
- > 32 dB
- Singlemode
Mechanical Performance
- Durability
- 3,000 mating cycles
- Operating Temperature
- -40 °C to 85 °C
- Storage Temperature
- -55 °C to 85 °C
- Water Immersion
- Up to 15 m
- Free Fall
- 500 falls @ 1.2 m
- Vibration
- 10 - 500 Hz, 3 axis, 0.75 mm, 10 g
- Shock
- 11 ms, 3 axis, 50 g
